Description

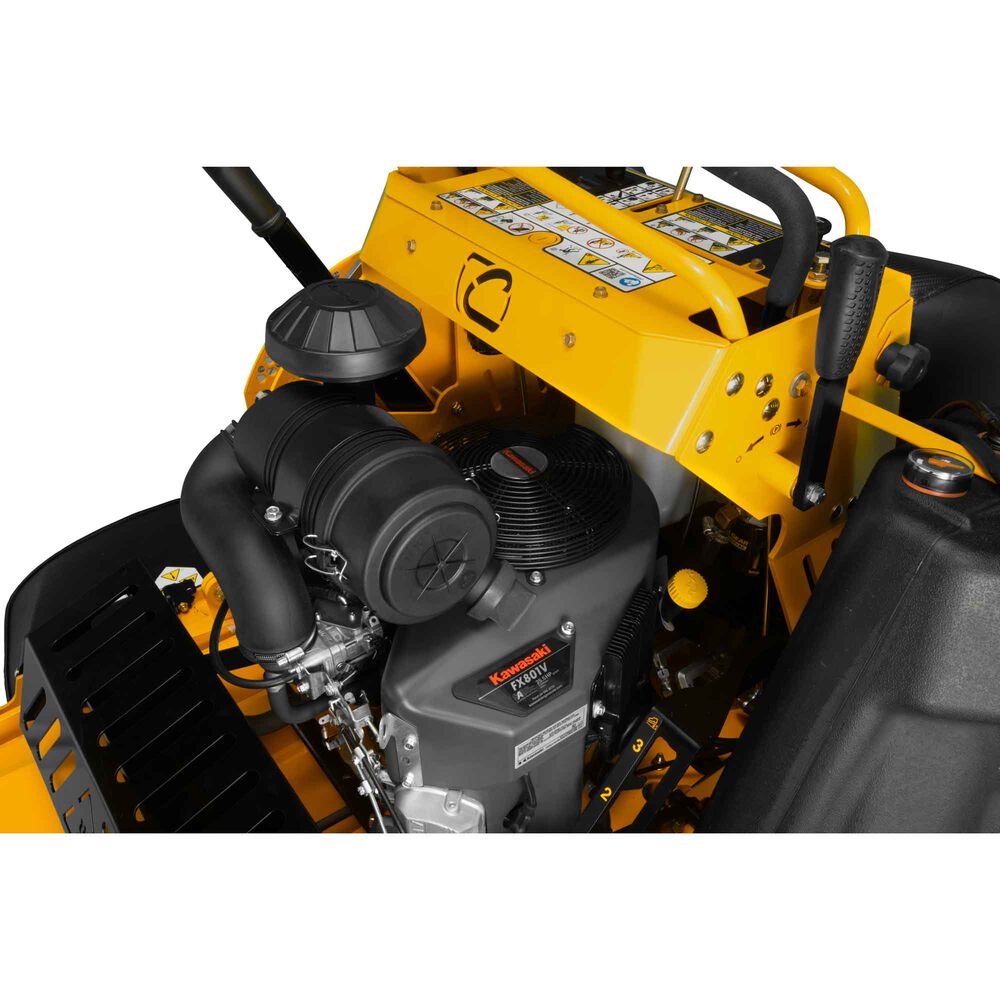

Engine
- Engine BrandKawasaki®
- Engine ModelFX Series
- Engine Model Number801V
- Engine Displacement852cc
- Engine Output25.5HP
- Starter TypeElectronic
- Fuel Tank Capacity7.5 gal. US (28.4 L)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qt. US (1.89 L)
- LubricationFully pressurized
- Charging System15 amp regulated
- Fuel GaugeNo
- ChokeSeparate Choke
- Air FilterHigh Density
- Oil FilterYes
- Fuel DeliveryCarburetor
Drive System
- Transmission12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
- Forward Speed10 mph / 16 km/h
- Reverse Speed5 mph / 8 km/h
Cutting Deck
- Deck Cutting Width54 in
- Deck Material10-gauge steel
- Deck Engagement (PTO)Electronic with quick reset
- Deck Construction10 ga shell w/ 7 ga top & bottom reinforcement
- Spindle ConstructionHD 8″ aluminum housing, 35mm double-row sealed ball bearings, 1-3/8″ through-shaft and maintenance-free design
- Blade(s)Three 19″ long high-lift Marbain blades, 1-1/2″ of blade overlap
- Deck LiftHand lever adjusting spring lift, pin selector for height
- Cutting Height Range1.5”- 4.5”
- Anti-Scalping2 front deck gauge wheels
Chassis
- Frame2″ x 3″ full-length tube frame
- Front Axle2″ x 3″ tube construction
- Front Caster Mount3/8″ thick steel
- SuspensionHand lever adjust, 3-position spring suspension foot platform
Controls
- Cruise ControlNA
- BrakesHand lever control / external band
- Steering ControlLap Bar Steering Wheel Control
Wheels
- Rear Tires24″x12″-12″
- Front Tires13×5-6″ Reliance Run Flat carlisle
Dimensions
- Weight (approx.)1080 lbs
Additional Specifications
- Hour MeterCrew Boss
- Model Number53AI8CSA050
Warranty
- Residential Warranty3-year / no-hour-limit warranty
- Deck Shell Warranty5-year / 1,750 hour limited manufacturer’s warranty
